ট্রাইকোন রক বিট
Created with Pixso.

ওয়াটার ওয়েল ড্রিলিং বিট / এইচডিডি পাইলট বিট 311.2 মিমি এফএ 1717 জি এপিআই -7-1 স্ট্যান্ডার্ড

ওয়াটার ওয়েল ড্রিলিং বিট / এইচডিডি পাইলট বিট 311.2 মিমি এফএ 1717 জি এপিআই -7-1 স্ট্যান্ডার্ড

ব্র্যান্ড নাম: FLRT
Model Number: 12 1/4 FA517G
MOQ: 20PCS
সরবরাহের ক্ষমতা: প্রান্তিকে প্রতি 300 পিসি
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
সাক্ষ্যদান:
API-7-1, ISO 9001:2008
বিয়ারিং টাইপ:
সিল ঘর্ষণ ভারবহন
কাটিয়া উপাদান:
টিসিআই
স্ট্যান্ডার্ড:
API-7-1, ISO 9001:2008
সিরিজ:
এফ.এ
আইএডিসি:
517
পরিপূরক বৈশিষ্ট্য:
G: চাঙ্গা গেজ সুরক্ষা
আবেদন ১:
এইচডিডি ড্রিলিং (পাইলট বিট)
আবেদন 2:
অগভীর তেল ওয়েল তুরপুন
প্যাকেজিং বিবরণ:
পাতলা পাতলা কাঠ বক্স / লোহার বাক্স
বিশেষভাবে তুলে ধরা:

হার্ড রক ড্রিল বিট FA517G

,

HDD পাইলট বিট 311.2mm

,

ওয়াটার ওয়েল ড্রিলিং বিট API-7-1

পণ্যের বর্ণনা

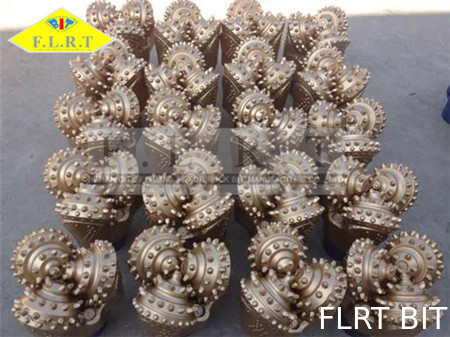

311.2mm FA517G , Rock Bit, Water Well Drilling Bit , TCI Bit, Rotary Drilling Bit , HDD Pilot Bit

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types & IADC Code

417

437

447

517

527

517

527

537

547

617

627

637

WOB

KN/mm(Bit Dia.)

0.4~0.9

0.4~0.9

0.35~1.0

0.35~1.0

0.5~1.0

0.6~1.1

0.7~1.2

Lb/in. (Bit Dia.)

2285~5142

2285~5142

2000~5714

2000~5714

2857~5714

3428~6285

4000~6857

Rotation Speed (Rpm)

140~60

240~70

125~50

~60

110~50

100~40

80~4

Cone offset

  1. - It forces the cone to rotate around the axis of the bit
  2. - The cone slips as it rotates causing tearing and gouging action
  3. - Amount of offset directly relates to the strength of drilled rock
  4. - Large offset used for soft formation
  5. - Hard brittle rock need no offset
  6. - Medium hard rock need up to 2 offset
  7. - The degree of offset is defined as the horizontal distance between the axis of the bit and a vertical plane through the axis of the journal
